Report item
Item specifics
  • Brand Name: lintratek
  • Model Number: LPT17A-GSM-0.55
  • Frequency Range: GSM
  • Uplink: 890~915 MHz
  • Downlink: 935 ~ 960 MHz
  • Gain Downlink: 65±2dB
  • Booster: GSM repeater
Product Description

                                             Selling Point:

                     The Cell Phone Signal Booster supports GSM 900Mhz

it works withGSM 900Mhz network,it supports any wireless operator in the frequency range of Uplink:GSM 890-915 and Downlink:   GSM 925-960  .
It could only strengthen cell phone signal, could not produce cell phone signal,
Note : if there is no cell phone signal at all in your area,there is no need to use it
GSM 900Mhz  Booster ONLY!! Please Check Before You Buy!



                                            Feature:



1) Fully integrated 900 MHz antenna system

2) Powerful amplifier enables up to + 85 dB of signal gain including cable loss

3) Intelligent signal processing and real time adaptive operation ,  squishy

4) Automatically adjusts power levels as needed to ensure a consistent coverage footprint

5) Reprogrammable (in the field) enabling spectrum or carrier reconfigurations as needed

6) Auto-Track LED diagnostics displays aid install and operation

7) Patented algorithms and adaptive processing ensure our products will not interfere with other wireless frequencies or radio devices


Note: Please make sure your outdoor signal is good enough,signal strength much than -70db is better.













2

Technique Specifications:
Item Specification
Up Link Donw Link:
Frequency Range :890MHz--915MHz 935MHz--960MHz
Power: -70 ~ -40dBm/FA (1.23MHz)
Gain :55Db ±3db; 60Db ±3db
Max Output Power: +17dBm/ ±3DBM
Total Power: +17dBm/ ±3DBM Total Power
Impedance :50Ω
Power Supply: AC 110/220V (used AC/DC Adapter 5V dc)
Seclusion :>70dB
Compact Design Indoor Use
Item Diemension :140 x 100 x 20mm
Connect Mode N connector
Ambient temperature :-10°C~60°C

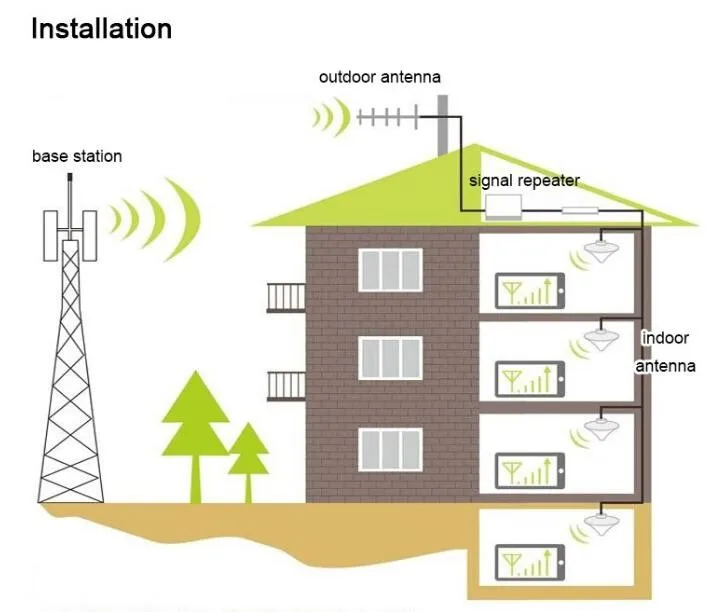

Signal coverage area :
1.Support Maximum coverage area is 200 square meters.
  ( Depend on the area condition)
2.One indoor antenna only use for about 100 square meters.
  ( Without any obstacles and wall.)
If want to make all use of 200 square meters which the host supports,
need to add more indoor antennas (about2-3) and power divider / splitter.

Package included:
1 x GSM900MHz LCD display signal repeater.
1 x Power adapter
1 x Manual
1 x 10dbi Yagi Antenna antenna
1 x 10m cable
1 x ceiling antenna with 2 meters cable

NOTES:
1.We send EU adapter, if you need additional adapters, please leave a message.
2.The  cable color random distribution, if you request color, please leave a message,thank you!

10 dBi 5 units Yagi Antenna
Features:
Aluminum alloy structure;Optimized dimension;
All-weather work;
High Gain 10dBi;Low VSWR;
Can be installed in vertical or horizontal polarization;
Apply for: GSM900 Signal Repeater
Specifications:
Frequency rang: 824-960MHz
Gain: 10dBi
Connector model:N
Working Temperature: -40~60 °c
Rated Wind Velocity: 60m/s
color: silver
Cable:Coaxial cable 75-5

Size: 50cm*15cm*5cm












Packaging Details
  • Unit Type: piece
  • Package Weight: 2.3kg (5.07lb.)
  • Package Size: 25cm x 16cm x 7cm (9.84in x 6.30in x 2.76in)
